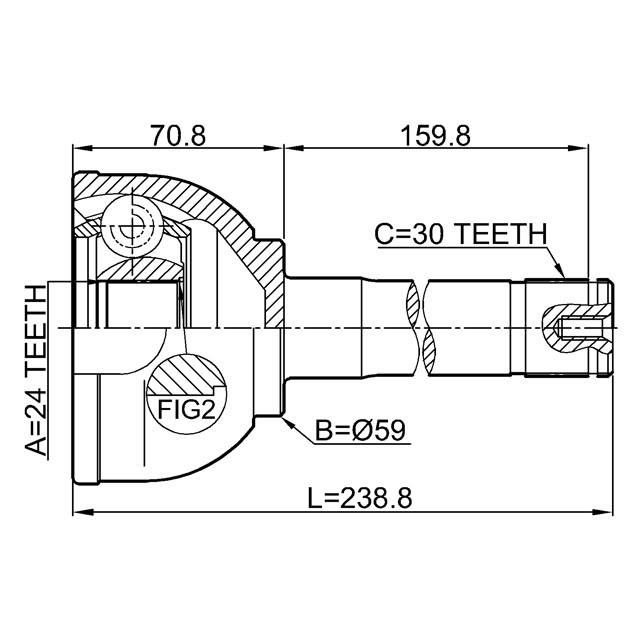

Чертёж / схема
FEBEST / Артикул
0110-057
шрус наружный 24x59x30
FEBESTFEBEST
Артикул0110-057
OEM / аналоги
TOYOTA43405-60030
TOYOTA43405-60050
TOYOTA43405-60120
Применимость
TOYOTA
AUTANA (_J8_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.0 EFi (FJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F-E | 112KW / 152HP | 3956 | Petrol |
| 4.0 (FJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F | 110KW / 150HP | 3956 | Petrol |
| 4.0 (FJ80_, FJ80R, FJ80G) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F-E | 115KW / 156HP | 3956 | Petrol |
| 4.2 D (HZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1H-Z | 94KW / 128HP | 4164 | Diesel |
| 4.2 D (HZJ80, HZJ81) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1H-Z | 99KW / 135HP | 4164 | Diesel |
| 4.2 TD (HDJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 115KW / 156HP | 4164 | Diesel |
| 4.2 TD (HDJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 118KW / 160HP | 4164 | Diesel |
| 4.2 TD (HDJ80, HDJ81) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 123KW / 167HP | 4164 | Diesel |
| 4.5 24V (FZJ80_) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 151KW / 205HP | 4477 | Petrol |
| 4.5 4WD (FZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 158KW / 215HP | 4477 | Petrol |
| 4.5 4WD (FZJ80_) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 EFi 4WD (FZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 158KW / 215HP | 4477 | Petrol |
LAND CRUISER (_J1_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 i (FZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
LAND CRUISER (_J7_, _JL7_)8 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.0 4x4 (GRJ79, GRJ76, GRJ71) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1GR-FE | 170KW / 231HP | 3956 | Petrol |
| 4.2 D 4x4 (HZJ74, HZJ78, HZJ75) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 123KW / 167HP | 4164 | Diesel |
| 4.2 D (HZJ70RV, HZJ75RV, HZJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.2 D (HZJ76, HZJ78, HZJ70, HZJ73, HZJ75, HZJ79, HZJ77,... | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 MPFi 4x4 (FZJ78, FZJ70, FZJ78R, FZJ79) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 MPFi 4x4 (FZJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 TD 32V 4x4 (VDJ76, VDJ78) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1VD-FTV | 151KW / 205HP | 4461 | Diesel |
| 4.5 TD 32V 4x4 (VDJ76, VDJ78, VDJ76R, VDJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1VD-FTV | 151KW / 205HP | 4461 | Diesel |
LAND CRUISER (_J8_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.0 EFi (FJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F-E | 112KW / 152HP | 3956 | Petrol |
| 4.0 (FJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F | 110KW / 150HP | 3956 | Petrol |
| 4.0 (FJ80_, FJ80R, FJ80G) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F-E | 115KW / 156HP | 3956 | Petrol |
| 4.2 D (HZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1H-Z | 94KW / 128HP | 4164 | Diesel |
| 4.2 D (HZJ80, HZJ81) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1H-Z | 99KW / 135HP | 4164 | Diesel |
| 4.2 TD (HDJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 115KW / 156HP | 4164 | Diesel |
| 4.2 TD (HDJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 118KW / 160HP | 4164 | Diesel |
| 4.2 TD (HDJ80, HDJ81) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 123KW / 167HP | 4164 | Diesel |
| 4.5 24V (FZJ80_) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 151KW / 205HP | 4477 | Petrol |
| 4.5 4WD (FZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 158KW / 215HP | 4477 | Petrol |
| 4.5 4WD (FZJ80_) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 EFi 4WD (FZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 158KW / 215HP | 4477 | Petrol |
LAND CRUISER 100 (_J1_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 i (FZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
LAND CRUISER 100 (_J1_, _J10_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 i (FZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
LAND CRUISER 80 (_J8_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.0 EFi (FJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F-E | 112KW / 152HP | 3956 | Petrol |
| 4.0 (FJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F | 110KW / 150HP | 3956 | Petrol |
| 4.0 (FJ80_, FJ80R, FJ80G) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F-E | 115KW / 156HP | 3956 | Petrol |
| 4.2 D (HZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1H-Z | 94KW / 128HP | 4164 | Diesel |
| 4.2 D (HZJ80, HZJ81) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1H-Z | 99KW / 135HP | 4164 | Diesel |
| 4.2 TD (HDJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 115KW / 156HP | 4164 | Diesel |
| 4.2 TD (HDJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 118KW / 160HP | 4164 | Diesel |
| 4.2 TD (HDJ80, HDJ81) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 123KW / 167HP | 4164 | Diesel |
| 4.5 24V (FZJ80_) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 151KW / 205HP | 4477 | Petrol |
| 4.5 4WD (FZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 158KW / 215HP | 4477 | Petrol |
| 4.5 4WD (FZJ80_) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 EFi 4WD (FZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 158KW / 215HP | 4477 | Petrol |
LAND CRUISER 80 III (_J8_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.0 EFi (FJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F-E | 112KW / 152HP | 3956 | Petrol |
| 4.0 (FJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F | 110KW / 150HP | 3956 | Petrol |
| 4.0 (FJ80_, FJ80R, FJ80G) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 3F-E | 115KW / 156HP | 3956 | Petrol |
| 4.2 D (HZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1H-Z | 94KW / 128HP | 4164 | Diesel |
| 4.2 D (HZJ80, HZJ81) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1H-Z | 99KW / 135HP | 4164 | Diesel |
| 4.2 TD (HDJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 115KW / 156HP | 4164 | Diesel |
| 4.2 TD (HDJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 118KW / 160HP | 4164 | Diesel |
| 4.2 TD (HDJ80, HDJ81) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1HD-T | 123KW / 167HP | 4164 | Diesel |
| 4.5 24V (FZJ80_) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 151KW / 205HP | 4477 | Petrol |
| 4.5 4WD (FZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 158KW / 215HP | 4477 | Petrol |
| 4.5 4WD (FZJ80_) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 EFi 4WD (FZJ80) | Closed Off-Road Vehicle | 1990 - 1999 | TOYOTA 1FZ-FE | 158KW / 215HP | 4477 | Petrol |
LAND CRUISER AMAZON (_J1_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 i (FZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
LAND CRUISER CYGNUS (_J1_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 i (FZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
LAND CRUISER FRP Top (_J7_)1 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ70, HZJ73) | Open Off-Road Vehicle | 1984 - 2001 | TOYOTA 1H-Z | 123KW / 167HP | 4164 | Diesel |
LAND CRUISER Hardtop (_J7_)1 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ70, HZJ73) | Open Off-Road Vehicle | 1984 - 2001 | TOYOTA 1H-Z | 123KW / 167HP | 4164 | Diesel |
LAND CRUISER I (_J7_, _JL7_)8 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.0 4x4 (GRJ79, GRJ76, GRJ71) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1GR-FE | 170KW / 231HP | 3956 | Petrol |
| 4.2 D 4x4 (HZJ74, HZJ78, HZJ75) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 123KW / 167HP | 4164 | Diesel |
| 4.2 D (HZJ70RV, HZJ75RV, HZJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.2 D (HZJ76, HZJ78, HZJ70, HZJ73, HZJ75, HZJ79, HZJ77,... | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 MPFi 4x4 (FZJ78, FZJ70, FZJ78R, FZJ79) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 MPFi 4x4 (FZJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 TD 32V 4x4 (VDJ76, VDJ78) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1VD-FTV | 151KW / 205HP | 4461 | Diesel |
| 4.5 TD 32V 4x4 (VDJ76, VDJ78, VDJ76R, VDJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1VD-FTV | 151KW / 205HP | 4461 | Diesel |
LAND CRUISER I Hardtop (_J7_)1 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ70, HZJ73) | Open Off-Road Vehicle | 1984 - 2001 | TOYOTA 1H-Z | 123KW / 167HP | 4164 | Diesel |
LAND CRUISER Pick-up (_J7_, _JL7_)4 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.0 4x4 (GRJ79) | Platform/Chassis | 1984 - 2007 | TOYOTA 1GR-FE | 170KW / 231HP | 3956 | Petrol |
| 4.2 D 4x4 | Platform/Chassis | 1984 - 2007 | TOYOTA 1H-Z | 100KW / 136HP | 4164 | Diesel |
| 4.5 TD 32V 4x4 (VDJ79) | Platform/Chassis | 1984 - 2007 | TOYOTA 1VD-FTV | 151KW / 205HP | 4461 | Diesel |
| 4.5 TD 32V 4x4 (VDJ79, VDJ79R) | Platform/Chassis | 1984 - 2007 | TOYOTA 1VD-FTV | 151KW / 205HP | 4461 | Diesel |
LAND CRUISER PRADO (_J7_, _JL7_)8 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.0 4x4 (GRJ79, GRJ76, GRJ71) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1GR-FE | 170KW / 231HP | 3956 | Petrol |
| 4.2 D 4x4 (HZJ74, HZJ78, HZJ75) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 123KW / 167HP | 4164 | Diesel |
| 4.2 D (HZJ70RV, HZJ75RV, HZJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.2 D (HZJ76, HZJ78, HZJ70, HZJ73, HZJ75, HZJ79, HZJ77,... | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 MPFi 4x4 (FZJ78, FZJ70, FZJ78R, FZJ79) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 MPFi 4x4 (FZJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
| 4.5 TD 32V 4x4 (VDJ76, VDJ78) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1VD-FTV | 151KW / 205HP | 4461 | Diesel |
| 4.5 TD 32V 4x4 (VDJ76, VDJ78, VDJ76R, VDJ78R) | Closed Off-Road Vehicle | 1984 - 2009 | TOYOTA 1VD-FTV | 151KW / 205HP | 4461 | Diesel |
MACHO (_J1_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 i (FZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
PRADO (_J1_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 i (FZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
PRADO IV (_J1_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 4.2 D (HZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1H-Z | 96KW / 131HP | 4164 | Diesel |
| 4.5 i (FZJ105) | Closed Off-Road Vehicle | 1998 - 2008 | TOYOTA 1FZ-FE | 165KW / 224HP | 4477 | Petrol |
Характеристики
Тип соединения / сочлененияШарнир равных угловых скоростей
наружный диаметр [мм]104 / 105
внешнее зацепление со стороны колеса30
внутренне зубчатое соединение со стороны колеса24
Сторона установкиПередний мост / со стороны колеса
диаметр прокладки [мм]59
Данные о совместимости уточняйте по оригинальному номеру и VIN.
