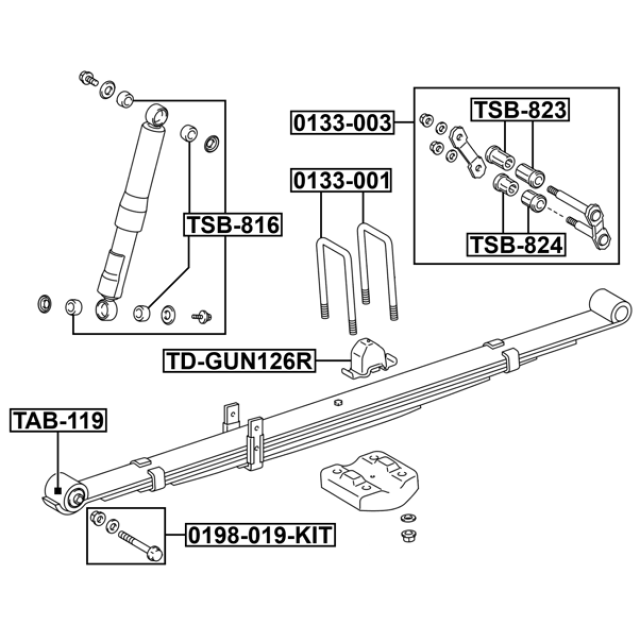

Чертёж / схема
FEBEST / Артикул
0133-003

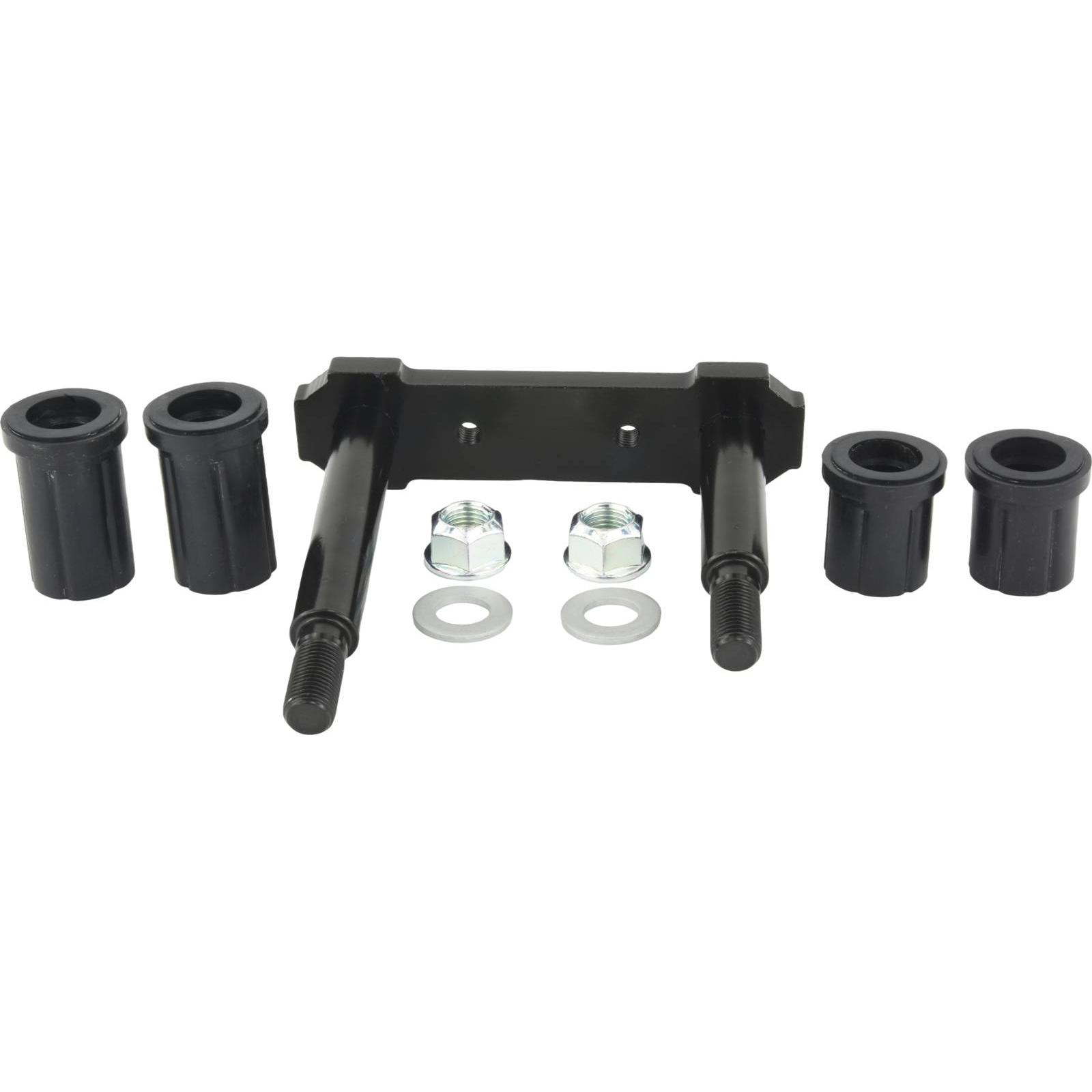

скоба задней рессоры ремкомплект
FEBESTFEBEST
Артикул0133-003
OEM / аналоги
TOYOTA04483-KK010
TOYOTA48444-KK020
TOYOTA90178-T0027
TOYOTA90201-T0014
TOYOTA90385-T0014
TOYOTA90385-T0017
Применимость
TOYOTA
HILUX REVO VIII Pickup (_N1_)41 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.4 D 4WD (GUN125) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 125KW / 170HP | 2393 | Diesel |
| 2.4 D 4WD (GUN125_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 108KW / 147HP | 2393 | Diesel |
| 2.4 D 4WD (GUN125_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D 4WD (GUN125_, GUN125R) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D (GUN112_, GUN122_, GUN135_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 108KW / 147HP | 2393 | Diesel |
| 2.4 D (GUN112_, GUN122_, GUN135_, GUN120_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D (GUN135) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 125KW / 170HP | 2393 | Diesel |
| 2.4 GD-6 4WD (GUN125_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 GD-6 (GUN112_, GUN122_, GUN135_, GUN120_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 TDi 4WD (GUN125_, GUN125R) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 TDi (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.5 D 4WD (KUN125_) | Pickup | 2015 - 2021 | TOYOTA 2KD-FTV | 106KW / 144HP | 2494 | Diesel |
| 2.5 D 4WD (KUN125_) | Pickup | 2015 - 2021 | TOYOTA 2KD-FTV | 74KW / 101HP | 2494 | Diesel |
| 2.5 D (KUN112_) | Pickup | 2015 - 2021 | TOYOTA 2KD-FTV | 75KW / 102HP | 2494 | Diesel |
| 2.5 D (KUN112_, KUN122_, KUN135_) | Pickup | 2015 - 2021 | TOYOTA 2KD-FTV | 75KW / 102HP | 2494 | Diesel |
| 2.7 4WD (TGN126_) | Pickup | 2015 - 2021 | TOYOTA 2TR-FE | 121KW / 165HP | 2694 | Petrol |
| 2.7 VVTi (TGN111_, TGN121_, TGN136_) | Pickup | 2015 - 2021 | TOYOTA 2TR-FE | 122KW / 166HP | 2694 | Petrol |
| 2.7 VVTi (TGN111_, TGN121_, TGN136_, TGN111R, TGN121R,... | Pickup | 2015 - 2021 | TOYOTA 2TR-FE | 122KW / 166HP | 2694 | Petrol |
| 2.8 D-4D 4WD (GUN126) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126_, GUN126R) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126R) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D (GUN123) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 125KW / 170HP | 2755 | Diesel |
| 2.8 D-4D (GUN123_, GUN136_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D (GUN123_, GUN136_, GUN123) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 125KW / 170HP | 2755 | Diesel |
| 2.8 D-4D (GUN123_, GUN136_, GUN136) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D (GUN136) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D (GUN136) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 D 4WD (GUN126_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 128KW / 174HP | 2755 | Diesel |
| 2.8 GD-6 4WD (GUN126) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 GD-6 4WD (GUN126_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 GD-6 (GUN123_, GUN136_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 GD-6 (GUN136) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 SR, SRV, SRX, STD 4WD (GUN126_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 TD 4WD (GUN126) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 3.0 D 4WD (KUN126, KUN136) | Pickup | 2015 - 2021 | TOYOTA 1KD-FTV | 120KW / 163HP | 2982 | Diesel |
| 4.0 V6 VVTi 4WD (GGN125, GGN135) | Pickup | 2015 - 2021 | TOYOTA 1GR-FE | 175KW / 238HP | 3956 | Petrol |
| 4.0 V6 VVTi (GGN120_, GGN135_) | Pickup | 2015 - 2021 | TOYOTA 1GR-FE | 175KW / 238HP | 3956 | Petrol |
| 4.0 V6 VVTi (GGN120_, GGN135_, GGN120R, GGN135R) | Pickup | 2015 - 2021 | TOYOTA 1GR-FE | 175KW / 238HP | 3956 | Petrol |
| 4.0 V6 VVTi (GGN120R, GGN135R) | Pickup | 2015 - 2021 | TOYOTA 1GR-FE | 175KW / 238HP | 3956 | Petrol |
HILUX REVO VIII Platform/Chassis (_N1_)10 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.4 D 4WD (GUN125_, GUN125R) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D (GUN112_, GUN122_, GUN135_) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 GD-6 4WD (GUN125_) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 GD-6 (GUN112_, GUN122_, GUN135_) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 TDi 4WD (GUN125_, GUN125R) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 TDi (GUN112_, GUN122_, GUN135_) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.8 D-4D 4WD (GUN126) | Platform/Chassis | 2015 - | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126_) | Platform/Chassis | 2015 - | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126_, GUN126R) | Platform/Chassis | 2015 - | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126R) | Platform/Chassis | 2015 - | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
HILUX VIII Pickup (_N1_)41 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.4 D 4WD (GUN125) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 125KW / 170HP | 2393 | Diesel |
| 2.4 D 4WD (GUN125_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 108KW / 147HP | 2393 | Diesel |
| 2.4 D 4WD (GUN125_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D 4WD (GUN125_, GUN125R) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D (GUN112_, GUN122_, GUN135_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 108KW / 147HP | 2393 | Diesel |
| 2.4 D (GUN112_, GUN122_, GUN135_, GUN120_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D (GUN135) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 125KW / 170HP | 2393 | Diesel |
| 2.4 GD-6 4WD (GUN125_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 GD-6 (GUN112_, GUN122_, GUN135_, GUN120_) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 TDi 4WD (GUN125_, GUN125R) | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 TDi (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... | Pickup | 2015 - 2021 | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.5 D 4WD (KUN125_) | Pickup | 2015 - 2021 | TOYOTA 2KD-FTV | 106KW / 144HP | 2494 | Diesel |
| 2.5 D 4WD (KUN125_) | Pickup | 2015 - 2021 | TOYOTA 2KD-FTV | 74KW / 101HP | 2494 | Diesel |
| 2.5 D (KUN112_) | Pickup | 2015 - 2021 | TOYOTA 2KD-FTV | 75KW / 102HP | 2494 | Diesel |
| 2.5 D (KUN112_, KUN122_, KUN135_) | Pickup | 2015 - 2021 | TOYOTA 2KD-FTV | 75KW / 102HP | 2494 | Diesel |
| 2.7 4WD (TGN126_) | Pickup | 2015 - 2021 | TOYOTA 2TR-FE | 121KW / 165HP | 2694 | Petrol |
| 2.7 VVTi (TGN111_, TGN121_, TGN136_) | Pickup | 2015 - 2021 | TOYOTA 2TR-FE | 122KW / 166HP | 2694 | Petrol |
| 2.7 VVTi (TGN111_, TGN121_, TGN136_, TGN111R, TGN121R,... | Pickup | 2015 - 2021 | TOYOTA 2TR-FE | 122KW / 166HP | 2694 | Petrol |
| 2.8 D-4D 4WD (GUN126) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126_, GUN126R) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126R) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D (GUN123) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 125KW / 170HP | 2755 | Diesel |
| 2.8 D-4D (GUN123_, GUN136_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D (GUN123_, GUN136_, GUN123) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 125KW / 170HP | 2755 | Diesel |
| 2.8 D-4D (GUN123_, GUN136_, GUN136) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D (GUN136) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D (GUN136) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 D 4WD (GUN126_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 128KW / 174HP | 2755 | Diesel |
| 2.8 GD-6 4WD (GUN126) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 GD-6 4WD (GUN126_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 GD-6 (GUN123_, GUN136_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 GD-6 (GUN136) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 SR, SRV, SRX, STD 4WD (GUN126_) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 TD 4WD (GUN126) | Pickup | 2015 - 2021 | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 3.0 D 4WD (KUN126, KUN136) | Pickup | 2015 - 2021 | TOYOTA 1KD-FTV | 120KW / 163HP | 2982 | Diesel |
| 4.0 V6 VVTi 4WD (GGN125, GGN135) | Pickup | 2015 - 2021 | TOYOTA 1GR-FE | 175KW / 238HP | 3956 | Petrol |
| 4.0 V6 VVTi (GGN120_, GGN135_) | Pickup | 2015 - 2021 | TOYOTA 1GR-FE | 175KW / 238HP | 3956 | Petrol |
| 4.0 V6 VVTi (GGN120_, GGN135_, GGN120R, GGN135R) | Pickup | 2015 - 2021 | TOYOTA 1GR-FE | 175KW / 238HP | 3956 | Petrol |
| 4.0 V6 VVTi (GGN120R, GGN135R) | Pickup | 2015 - 2021 | TOYOTA 1GR-FE | 175KW / 238HP | 3956 | Petrol |
HILUX VIII Platform/Chassis (_N1_)10 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.4 D 4WD (GUN125_, GUN125R) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 D (GUN112_, GUN122_, GUN135_) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 GD-6 4WD (GUN125_) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 GD-6 (GUN112_, GUN122_, GUN135_) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 TDi 4WD (GUN125_, GUN125R) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.4 TDi (GUN112_, GUN122_, GUN135_) | Platform/Chassis | 2015 - | TOYOTA 2GD-FTV | 110KW / 150HP | 2393 | Diesel |
| 2.8 D-4D 4WD (GUN126) | Platform/Chassis | 2015 - | TOYOTA 1GD-FTV | 150KW / 204HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126_) | Platform/Chassis | 2015 - | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126_, GUN126R) | Platform/Chassis | 2015 - | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
| 2.8 D-4D 4WD (GUN126R) | Platform/Chassis | 2015 - | TOYOTA 1GD-FTV | 130KW / 177HP | 2755 | Diesel |
Данные о совместимости уточняйте по оригинальному номеру и VIN.
