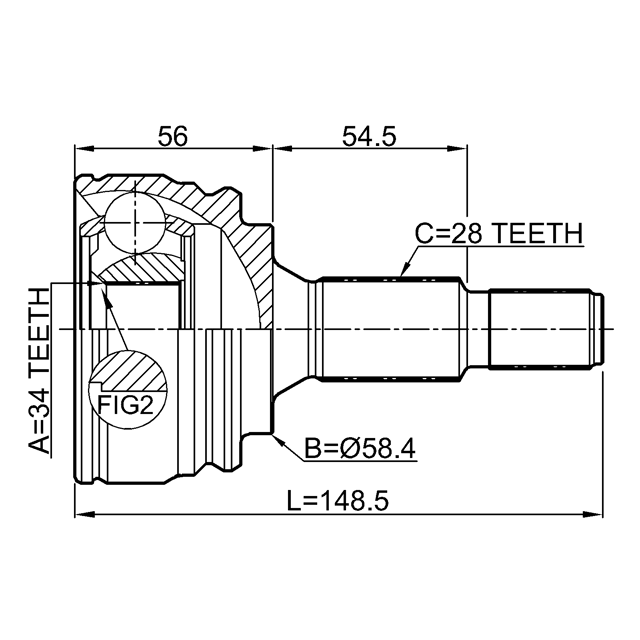

Чертёж / схема

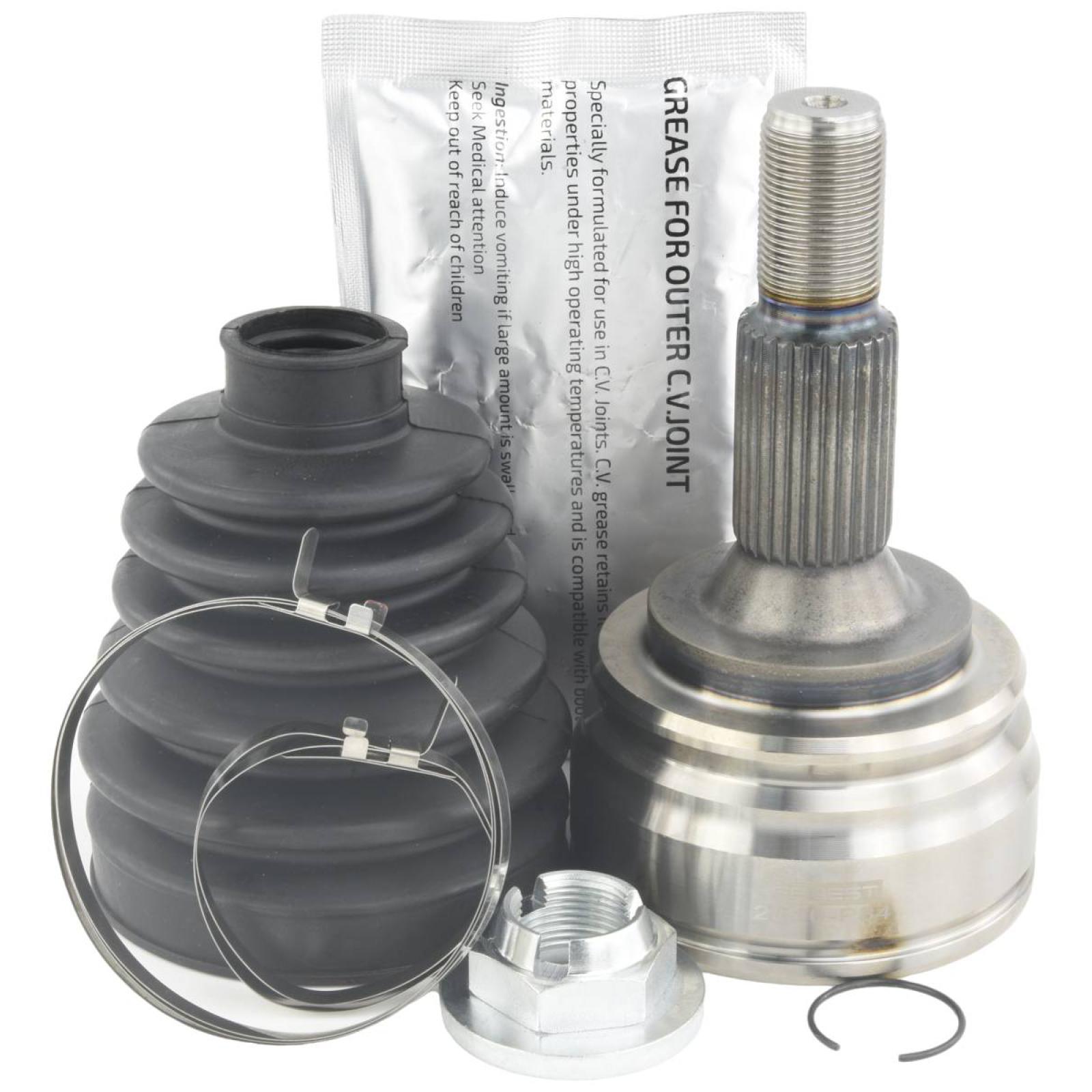

FEBEST / Артикул
2510-P84
шрус наружный 34x58.4x28
FEBESTFEBEST
Артикул2510-P84
OEM / аналоги
CITROEN1610561580
CITROEN1613306680
CITROEN1617300580
CITROEN1631813280
CITROEN9671411480
CITROEN9677915180
CITROEN9806699880
CITROEN9808771480
CITROEN9809527980
CITROEN9811176480
CITROEN9811176780
CITROEN9811176880
CITROEN9812220480
CITROEN9812220580
CITROEN9812225180
CITROEN9812225280
CITROEN9812228980
CITROEN9812229080
CITROEN9815636180
CITROEN9819435780
OPEL3639170
OPEL3642832
OPEL3645068
PEUGEOT1610561580
PEUGEOT1613306680
PEUGEOT1617300580
PEUGEOT1631813280
PEUGEOT9671411480
PEUGEOT9677915180
PEUGEOT9806699880
PEUGEOT9808771480
PEUGEOT9809527980
PEUGEOT9811176480
PEUGEOT9811176780
PEUGEOT9811176880
PEUGEOT9812220480
PEUGEOT9812220580
PEUGEOT9812225180
PEUGEOT9812225280
PEUGEOT9812228980
PEUGEOT9812229080
PEUGEOT9815636180
PEUGEOT9819435780
Применимость
CITROEN
C4 GRAND PICASSO I (UA_)18 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.6 16V | MPV | 2006 - 2013 | CITRO?N 5FT (EP6DT) | 103KW / 140HP | 1598 | Petrol |
| 1.6 16V | MPV | 2006 - 2013 | CITRO?N 5FX (EP6DT) | 110KW / 150HP | 1598 | Petrol |
| 1.6 HDi | MPV | 2006 - 2013 | CITRO?N 9HY (DV6TED4) | 80KW / 109HP | 1560 | Diesel |
| 1.6 HDi | MPV | 2006 - 2013 | CITRO?N 9HZ (DV6TED4) | 80KW / 109HP | 1560 | Diesel |
| 1.6 HDi 110 | MPV | 2006 - 2013 | CITRO?N 9HR (DV6C) | 82KW / 112HP | 1560 | Diesel |
| 1.6 THP 155 | MPV | 2006 - 2013 | CITRO?N 5FV (EP6CDT) | 115KW / 156HP | 1598 | Petrol |
| 1.6 VTi 120 | MPV | 2006 - 2013 | CITRO?N 5FS (EP6C) | 88KW / 120HP | 1598 | Petrol |
| 1.6 VTi 120 | MPV | 2006 - 2013 | CITRO?N 5FW (EP6) | 88KW / 120HP | 1598 | Petrol |
| 1.8 i 16V | MPV | 2006 - 2013 | CITRO?N 6FY (EW7A) | 92KW / 125HP | 1749 | Petrol |
| 1.8 i 16V CNG | MPV | 2006 - 2013 | 86KW / 117HP | 1749 | CNG | |
| 1.8 i 16V Flex | MPV | 2006 - 2013 | CITRO?N 6FY (EW7A) | 86KW / 117HP | 1749 | Petrol/Ethanol |
| 2.0 HDi 138 | MPV | 2006 - 2013 | CITRO?N RHJ (DW10BTED4) | 100KW / 136HP | 1997 | Diesel |
| 2.0 HDi 138 | MPV | 2006 - 2013 | CITRO?N RHR (DW10BTED4) | 100KW / 136HP | 1997 | Diesel |
| 2.0 HDi 150 | MPV | 2006 - 2013 | CITRO?N RHE (DW10CTED4) | 110KW / 150HP | 1997 | Diesel |
| 2.0 HDi 165 | MPV | 2006 - 2013 | CITRO?N RHH (DW10CTED4) | 120KW / 163HP | 1997 | Diesel |
| 2.0 i 16V | MPV | 2006 - 2013 | CITRO?N RFJ (EW10A) | 103KW / 140HP | 1997 | Petrol |
| 2.0 i 16V | MPV | 2006 - 2013 | CITRO?N RFJ (EW10A) | 105KW / 143HP | 1997 | Petrol |
| 2.0 i Exclusive 16V | MPV | 2006 - 2013 | CITRO?N RFJ (EW10A) | 105KW / 143HP | 1997 | Petrol |
C4 GRAND PICASSO II (DA_, DE_)9 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.6 HDi 90 | MPV | 2013 - 2016 | CITRO?N 9HP (DV6DTED) | 68KW / 92HP | 1560 | Diesel |
| 1.6 HDi / BlueHDi 115 | MPV | 2013 - 2016 | CITRO?N 9HC (DV6C) | 85KW / 115HP | 1560 | Diesel |
| 1.6 HDi / BlueHDi 115 | MPV | 2013 - 2016 | CITRO?N BHX (DV6FC) | 85KW / 115HP | 1560 | Diesel |
| 1.6 THP 155 | MPV | 2013 - 2016 | CITRO?N 5FV (EP6CDT) | 115KW / 156HP | 1598 | Petrol |
| 1.6 VTi 120 | MPV | 2013 - 2016 | CITRO?N 5FS (EP6C) | 88KW / 120HP | 1598 | Petrol |
| 2.0 BlueHDi 135 | MPV | 2013 - 2016 | CITRO?N AHV (DW10FD) | 100KW / 136HP | 1997 | Diesel |
| 2.0 BlueHDi 135 | MPV | 2013 - 2016 | CITRO?N RHD (DW10CB) | 100KW / 136HP | 1997 | Diesel |
| 2.0 BlueHDi 150 | MPV | 2013 - 2016 | CITRO?N AHR (DW10FD) | 110KW / 150HP | 1997 | Diesel |
| 2.0 BlueHDi 150 | MPV | 2013 - 2016 | CITRO?N AHX (DW10FD) | 110KW / 150HP | 1997 | Diesel |
C4 PICASSO I MPV (UD_)17 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.6 16V | MPV | 2006 - 2013 | CITRO?N 5FX (EP6DT) | 110KW / 150HP | 1598 | Petrol |
| 1.6 HDi | MPV | 2006 - 2013 | CITRO?N 9HY (DV6TED4) | 80KW / 109HP | 1560 | Diesel |
| 1.6 HDi | MPV | 2006 - 2013 | CITRO?N 9HZ (DV6TED4) | 80KW / 109HP | 1560 | Diesel |
| 1.6 HDi 110 | MPV | 2006 - 2013 | CITRO?N 9HR (DV6C) | 82KW / 112HP | 1560 | Diesel |
| 1.6 THP 140 | MPV | 2006 - 2013 | CITRO?N 5FT (EP6DT) | 103KW / 140HP | 1598 | Petrol |
| 1.6 THP 155 | MPV | 2006 - 2013 | CITRO?N 5FV (EP6CDT) | 115KW / 156HP | 1598 | Petrol |
| 1.6 VTi 120 | MPV | 2006 - 2013 | CITRO?N 5FW (EP6) | 88KW / 120HP | 1598 | Petrol |
| 1.8 Bifuel | MPV | 2006 - 2013 | CITRO?N 6FY (EW7A) | 92KW / 125HP | 1749 | Petrol/Ethanol |
| 1.8 i 16V | MPV | 2006 - 2013 | CITRO?N 6FY (EW7A) | 92KW / 125HP | 1749 | Petrol |
| 2.0 HDi 138 | MPV | 2006 - 2013 | CITRO?N RHJ (DW10BTED4) | 100KW / 136HP | 1997 | Diesel |
| 2.0 HDi 138 | MPV | 2006 - 2013 | CITRO?N RHR (DW10BTED4) | 100KW / 136HP | 1997 | Diesel |
| 2.0 HDi 150 | MPV | 2006 - 2013 | CITRO?N RHE (DW10CTED4) | 110KW / 150HP | 1997 | Diesel |
| 2.0 HDi 165 | MPV | 2006 - 2013 | CITRO?N RHH (DW10CTED4) | 120KW / 163HP | 1997 | Diesel |
| 2.0 i 16V | MPV | 2006 - 2013 | CITRO?N RFJ (EW10A) | 103KW / 140HP | 1997 | Petrol |
| 2.0 i 16V | MPV | 2006 - 2013 | CITRO?N RFN (EW10J4) | 105KW / 143HP | 1997 | Petrol |
| 2.0 i Exclusive, GLX 16V | MPV | 2006 - 2013 | CITRO?N RFJ (EW10A) | 103KW / 140HP | 1997 | Petrol |
| 2.0 La Luna | MPV | 2006 - 2013 | CITRO?N RFN (EW10J4) | 105KW / 143HP | 1997 | Petrol |
C4 PICASSO II11 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.6 HDi 90 | MPV | 2013 - 2016 | CITRO?N 9HP (DV6DTED) | 68KW / 92HP | 1560 | Diesel |
| 1.6 HDi / BlueHDi 115 | MPV | 2013 - 2016 | CITRO?N 9HC (DV6C) | 85KW / 115HP | 1560 | Diesel |
| 1.6 HDi / BlueHDi 115 | MPV | 2013 - 2016 | CITRO?N BHX (DV6FC) | 85KW / 115HP | 1560 | Diesel |
| 1.6 THP 155 | MPV | 2013 - 2016 | CITRO?N 5FV (EP6CDT) | 115KW / 156HP | 1598 | Petrol |
| 1.6 VTi 120 | MPV | 2013 - 2016 | CITRO?N 5FS (EP6C) | 88KW / 120HP | 1598 | Petrol |
| 2.0 BlueHDi 135 | MPV | 2013 - 2016 | CITRO?N AHV (DW10FD) | 100KW / 136HP | 1997 | Diesel |
| 2.0 BlueHDi 135 | MPV | 2013 - 2016 | CITRO?N RHD (DW10CB) | 100KW / 136HP | 1997 | Diesel |
| 2.0 BlueHDi 150 | MPV | 2013 - 2016 | CITRO?N AHE (DW10FD) | 110KW / 150HP | 1997 | Diesel |
| 2.0 BlueHDi 150 | MPV | 2013 - 2016 | CITRO?N AHR (DW10FD) | 110KW / 150HP | 1997 | Diesel |
| 2.0 BlueHDi 150 | MPV | 2013 - 2016 | CITRO?N AHX (DW10FD) | 110KW / 150HP | 1997 | Diesel |
| 2.0 i 16V | MPV | 2013 - 2016 | 105KW / 143HP | 1997 | Petrol |
C4 PICASSO II Van (DD_)5 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| BlueHDi 150 (DDAHXT) | Box Body/MPV | 2013 - | CITRO?N AHX (DW10FD) | 110KW / 150HP | 1997 | Diesel |
| e-HDi (DD9HC8, DD9HCT) | Box Body/MPV | 2013 - | CITRO?N 9HC (DV6C) | 85KW / 116HP | 1560 | Diesel |
| HDi / e-HDi (DD9HP0, DD9HPT) | Box Body/MPV | 2013 - | CITRO?N 9HP (DV6DTED) | 68KW / 92HP | 1560 | Diesel |
| THP 155 (DD5FV8) | Box Body/MPV | 2013 - | CITRO?N 5FV (EP6CDT) | 115KW / 156HP | 1598 | Petrol |
| VTi 120 (DD5FS0) | Box Body/MPV | 2013 - | CITRO?N 5FS (EP6C) | 88KW / 120HP | 1598 | Petrol |
OPEL
GRANDLAND X Van2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.2 (75) | SUV Van | 2018 - 2021 | OPEL D 12 XHT (EB2ADTS) | 96KW / 131HP | 1199 | Petrol |
| 1.5 (75) | SUV Van | 2018 - 2021 | OPEL D 15 DTH (DV5RC) | 96KW / 131HP | 1499 | Diesel |
Характеристики
наружный диаметр [мм]86
внешнее зацепление со стороны колеса28
внутренне зубчатое соединение со стороны колеса34
Сторона установкиПередний мост / со стороны колеса
диаметр прокладки [мм]58,4
Данные о совместимости уточняйте по оригинальному номеру и VIN.
