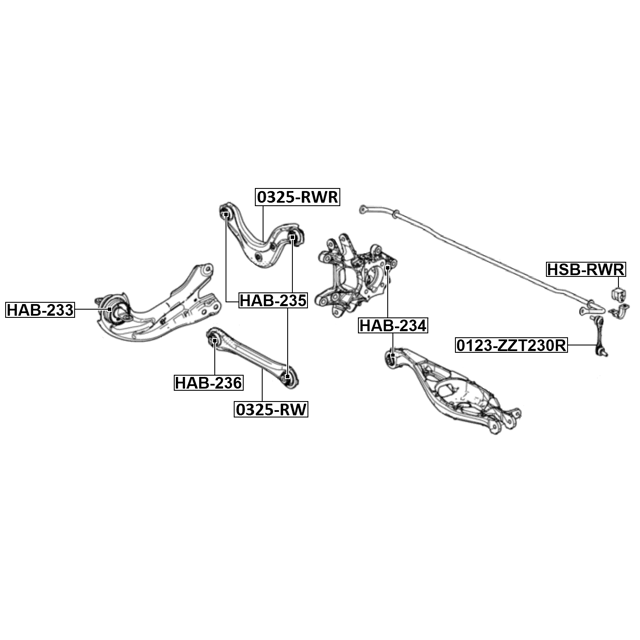

Чертёж / схема
FEBEST / Артикул

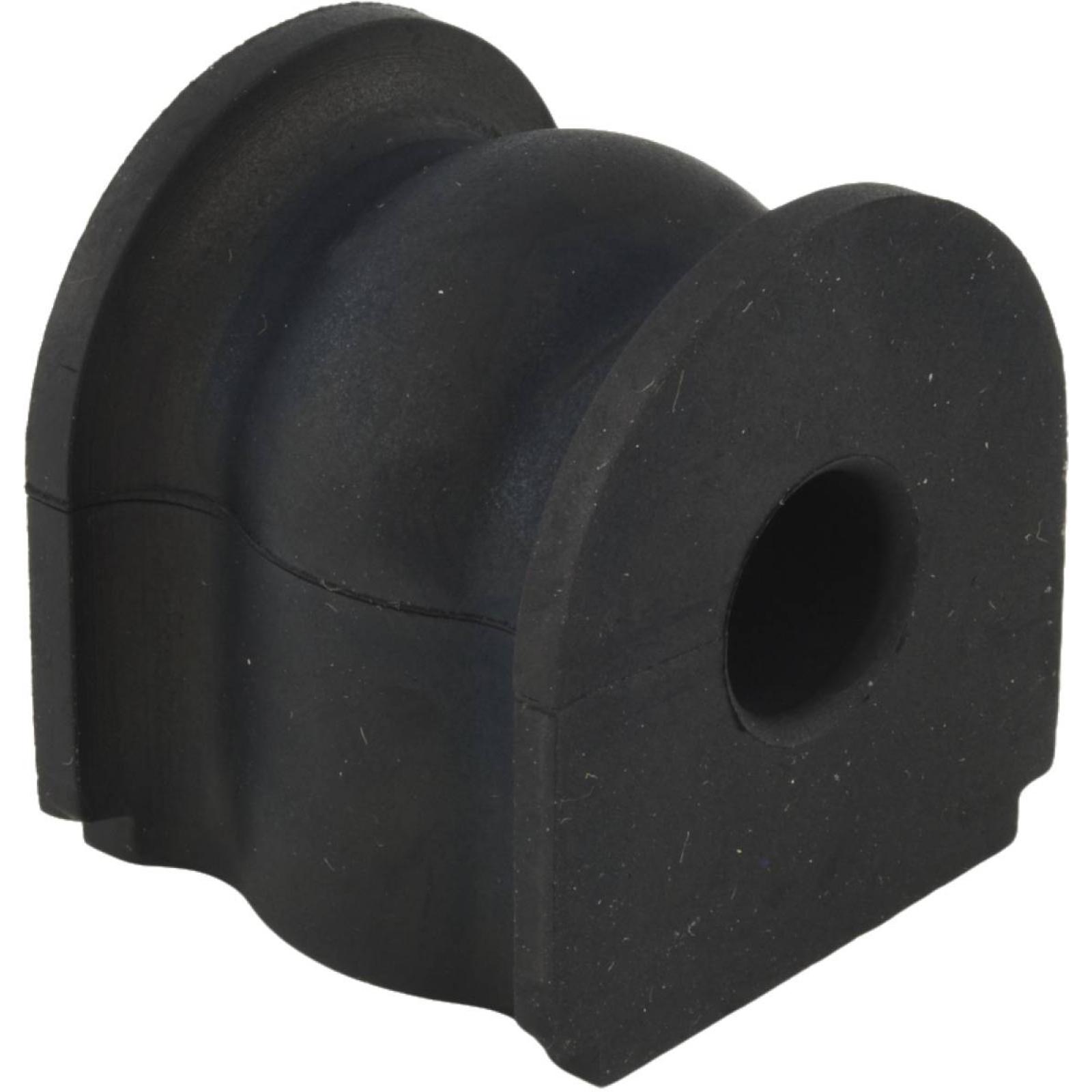

HSB-RWR
втулка заднего стабилизатора d13
FEBESTFEBEST
АртикулHSB-RWR
OEM / аналоги
HONDA52300-TLA-A51
HONDA52300-TLA-A52
HONDA52300-TLA-A53
HONDA52300-TMC-T52
HONDA52306-TLA-A51
HONDA52306-TLA-A52
Применимость
HONDA
(DONGFENG)
CR-V III (RE_)9 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.2 i-CTDi 4WD (RE6) | SUV | 2006 - 2012 | HONDA N22A2 | 103KW / 140HP | 2204 | Diesel |
| 2.2 i-DTEC 4WD (RE6) | SUV | 2006 - 2012 | HONDA N22B3 | 110KW / 150HP | 2199 | Diesel |
| 2.2 i-DTEC 4WD (RE6) | SUV | 2006 - 2012 | HONDA N22B4 | 110KW / 150HP | 2199 | Diesel |
| 2.4 4WD (RE4) | SUV | 2006 - 2012 | HONDA K24A | 124KW / 168HP | 2354 | Petrol |
| 2.4 4WD (RE4) | SUV | 2006 - 2012 | HONDA K24Z1 | 124KW / 168HP | 2354 | Petrol |
| 2.4 i-Vtec 4WD (RE4) | SUV | 2006 - 2012 | HONDA K24Z1 | 125KW / 170HP | 2354 | Petrol |
| 2.4 i-VTEC 4WD (RE4) | SUV | 2006 - 2012 | HONDA K24Z1 | 118KW / 160HP | 2354 | Petrol |
| 2.4 i-VTEC 4WD (RE7) | SUV | 2006 - 2012 | HONDA K24Z1 | 122KW / 166HP | 2354 | Petrol |
| 2.4 i-VTEC 4WD (RE7) | SUV | 2006 - 2012 | HONDA K24Z4 | 122KW / 166HP | 2354 | Petrol |
CR-V III Wagon (RE_)9 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.2 i-CTDi 4WD (RE6) | SUV | 2006 - 2012 | HONDA N22A2 | 103KW / 140HP | 2204 | Diesel |
| 2.2 i-DTEC 4WD (RE6) | SUV | 2006 - 2012 | HONDA N22B3 | 110KW / 150HP | 2199 | Diesel |
| 2.2 i-DTEC 4WD (RE6) | SUV | 2006 - 2012 | HONDA N22B4 | 110KW / 150HP | 2199 | Diesel |
| 2.4 4WD (RE4) | SUV | 2006 - 2012 | HONDA K24A | 124KW / 168HP | 2354 | Petrol |
| 2.4 4WD (RE4) | SUV | 2006 - 2012 | HONDA K24Z1 | 124KW / 168HP | 2354 | Petrol |
| 2.4 i-Vtec 4WD (RE4) | SUV | 2006 - 2012 | HONDA K24Z1 | 125KW / 170HP | 2354 | Petrol |
| 2.4 i-VTEC 4WD (RE4) | SUV | 2006 - 2012 | HONDA K24Z1 | 118KW / 160HP | 2354 | Petrol |
| 2.4 i-VTEC 4WD (RE7) | SUV | 2006 - 2012 | HONDA K24Z1 | 122KW / 166HP | 2354 | Petrol |
| 2.4 i-VTEC 4WD (RE7) | SUV | 2006 - 2012 | HONDA K24Z4 | 122KW / 166HP | 2354 | Petrol |
CR-V IV (RM_)16 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.6 i-DTEC 4WD (RE6) | SUV | 2012 - 2017 | HONDA N16A4 | 118KW / 160HP | 1597 | Diesel |
| 2.0 AWD (RE5, RM2) | SUV | 2012 - 2017 | HONDA R20A6 | 114KW / 155HP | 1997 | Petrol |
| 2.0 AWD (RE5, RM2) | SUV | 2012 - 2017 | HONDA R20A9 | 114KW / 155HP | 1997 | Petrol |
| 2.0 iVtec AWD (RE5, RM2) | SUV | 2012 - 2017 | HONDA R20A6 | 114KW / 155HP | 1997 | Petrol |
| 2.0 iVtec AWD (RE5, RM2) | SUV | 2012 - 2017 | HONDA R20A9 | 114KW / 155HP | 1997 | Petrol |
| 2.4 4WD | SUV | 2012 - 2017 | HONDA K24A1 | 136KW / 185HP | 2354 | Petrol |
| 2.4 4WD | SUV | 2012 - 2017 | HONDA K24Z7 | 138KW / 188HP | 2354 | Petrol |
| 2.4 4WD | SUV | 2012 - 2017 | HONDA K24Z9 | 138KW / 188HP | 2354 | Petrol |
| 2.4 4WD | SUV | 2012 - 2017 | HONDA K24W9 | 129KW / 175HP | 2356 | Petrol |
| 2.4 AWD | SUV | 2012 - 2017 | HONDA K24W | 136KW / 185HP | 2356 | Petrol |
| 2.4 AWD | SUV | 2012 - 2017 | HONDA K24W | 138KW / 188HP | 2356 | Petrol |
| 2.4 AWD (RM4) | SUV | 2012 - 2017 | HONDA K24Z9 | 140KW / 190HP | 2354 | Petrol |
| 2.4 AWD (RM4, RE7) | SUV | 2012 - 2017 | HONDA K24Z4 | 132KW / 180HP | 2354 | Petrol |
| 2.4 AWD (RM4, RE7) | SUV | 2012 - 2017 | HONDA K24Z6 | 132KW / 180HP | 2354 | Petrol |
| 2.4 i-VTEC 4WD (RM4) | SUV | 2012 - 2017 | HONDA K24A1 | 125KW / 170HP | 2354 | Petrol |
| 2.4 i-VTEC Flexfuel 4WD (RM4) | SUV | 2012 - 2017 | HONDA K24Y1 | 125KW / 170HP | 2354 | Petrol/Ethanol |
CR-V IV Wagon (RM_)16 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.6 i-DTEC 4WD (RE6) | SUV | 2012 - 2017 | HONDA N16A4 | 118KW / 160HP | 1597 | Diesel |
| 2.0 AWD (RE5, RM2) | SUV | 2012 - 2017 | HONDA R20A6 | 114KW / 155HP | 1997 | Petrol |
| 2.0 AWD (RE5, RM2) | SUV | 2012 - 2017 | HONDA R20A9 | 114KW / 155HP | 1997 | Petrol |
| 2.0 iVtec AWD (RE5, RM2) | SUV | 2012 - 2017 | HONDA R20A6 | 114KW / 155HP | 1997 | Petrol |
| 2.0 iVtec AWD (RE5, RM2) | SUV | 2012 - 2017 | HONDA R20A9 | 114KW / 155HP | 1997 | Petrol |
| 2.4 4WD | SUV | 2012 - 2017 | HONDA K24A1 | 136KW / 185HP | 2354 | Petrol |
| 2.4 4WD | SUV | 2012 - 2017 | HONDA K24Z7 | 138KW / 188HP | 2354 | Petrol |
| 2.4 4WD | SUV | 2012 - 2017 | HONDA K24Z9 | 138KW / 188HP | 2354 | Petrol |
| 2.4 4WD | SUV | 2012 - 2017 | HONDA K24W9 | 129KW / 175HP | 2356 | Petrol |
| 2.4 AWD | SUV | 2012 - 2017 | HONDA K24W | 136KW / 185HP | 2356 | Petrol |
| 2.4 AWD | SUV | 2012 - 2017 | HONDA K24W | 138KW / 188HP | 2356 | Petrol |
| 2.4 AWD (RM4) | SUV | 2012 - 2017 | HONDA K24Z9 | 140KW / 190HP | 2354 | Petrol |
| 2.4 AWD (RM4, RE7) | SUV | 2012 - 2017 | HONDA K24Z4 | 132KW / 180HP | 2354 | Petrol |
| 2.4 AWD (RM4, RE7) | SUV | 2012 - 2017 | HONDA K24Z6 | 132KW / 180HP | 2354 | Petrol |
| 2.4 i-VTEC 4WD (RM4) | SUV | 2012 - 2017 | HONDA K24A1 | 125KW / 170HP | 2354 | Petrol |
| 2.4 i-VTEC Flexfuel 4WD (RM4) | SUV | 2012 - 2017 | HONDA K24Y1 | 125KW / 170HP | 2354 | Petrol/Ethanol |
CR-V V (RW_, RT_)17 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.5 AWD | SUV | 2016 - 2023 | HONDA L15BE | 138KW / 188HP | 1498 | Petrol |
| 1.5 AWD | SUV | 2016 - 2023 | HONDA L15BG | 138KW / 188HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15B7 | 140KW / 190HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BE | 142KW / 193HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BG | 142KW / 193HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BH | 142KW / 193HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BY | 140KW / 190HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BY | 142KW / 193HP | 1498 | Petrol |
| 1.5 VTEC AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BY | 127KW / 173HP | 1498 | Petrol |
| 1.6 i-DTEC AWD | SUV | 2016 - 2023 | HONDA N16A4 | 88KW / 120HP | 1597 | Diesel |
| 2.0 AWD (RT6) | SUV | 2016 - 2023 | HONDA LFB1 | 107KW / 145HP | 1993 | Petrol |
| 2.0 e-CVT Hybrid AWD (RT6) | SUV | 2016 - 2023 | HONDA LFB1 | 158KW / 215HP | 1993 | Petrol/Electric |
| 2.0 e-CVT Hybrid AWD (RT6) | SUV | 2016 - 2023 | HONDA LFB2 | 158KW / 215HP | 1993 | Petrol/Electric |
| 2.0 i-VTEC AWD (RW4) | SUV | 2016 - 2023 | HONDA R20Z9 | 110KW / 150HP | 1997 | Petrol |
| 2.4 AWD | SUV | 2016 - 2023 | HONDA K24W9 | 135KW / 184HP | 2356 | Petrol |
| 2.4 Flexfuel AWD (RW6) | SUV | 2016 - 2023 | HONDA K24W9 | 127KW / 173HP | 2356 | Petrol/Ethanol |
| 2.4 i-VTEC AWD (RW6) | SUV | 2016 - 2023 | HONDA K24W9 | 137KW / 186HP | 2356 | Petrol |
CR-V V SUV (RW_, RT_)16 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.5 AWD | SUV | 2016 - 2023 | HONDA L15BE | 138KW / 188HP | 1498 | Petrol |
| 1.5 AWD | SUV | 2016 - 2023 | HONDA L15BG | 138KW / 188HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15B7 | 140KW / 190HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BE | 142KW / 193HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BG | 142KW / 193HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BH | 142KW / 193HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BY | 140KW / 190HP | 1498 | Petrol |
| 1.5 AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BY | 142KW / 193HP | 1498 | Petrol |
| 1.5 VTEC AWD (RW2) | SUV | 2016 - 2023 | HONDA L15BY | 127KW / 173HP | 1498 | Petrol |
| 1.6 i-DTEC AWD | SUV | 2016 - 2023 | HONDA N16A4 | 88KW / 120HP | 1597 | Diesel |
| 2.0 e-CVT Hybrid AWD (RT6) | SUV | 2016 - 2023 | HONDA LFB1 | 158KW / 215HP | 1993 | Petrol/Electric |
| 2.0 e-CVT Hybrid AWD (RT6) | SUV | 2016 - 2023 | HONDA LFB2 | 158KW / 215HP | 1993 | Petrol/Electric |
| 2.0 i-VTEC AWD (RW4) | SUV | 2016 - 2023 | HONDA R20Z9 | 110KW / 150HP | 1997 | Petrol |
| 2.4 AWD | SUV | 2016 - 2023 | HONDA K24W9 | 135KW / 184HP | 2356 | Petrol |
| 2.4 Flexfuel AWD (RW6) | SUV | 2016 - 2023 | HONDA K24W9 | 127KW / 173HP | 2356 | Petrol/Ethanol |
| 2.4 i-VTEC AWD (RW6) | SUV | 2016 - 2023 | HONDA K24W9 | 137KW / 186HP | 2356 | Petrol |
CR-V VI (RS_, RY_)4 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 1.5 VTEC TURBO AWD (RS4) | SUV | 2023 - | HONDA L15BE | 140KW / 190HP | 1498 | Petrol;Petrol/Ethanol |
| e:HEV AWD (RS6) | SUV | 2023 - | HONDA LFB16 | 135KW / 184HP | 1993 | Petrol/Electric |
| e:HEV AWD (RS6) | SUV | 2023 - | HONDA LFC2 | 152KW / 207HP | 1993 | Petrol/Electric |
| e:HEV AWD (RS6) | SUV | 2023 - | HONDA LFC3 | 152KW / 207HP | 1993 | Petrol/Electric |
HONDA (DONGFENG)
CR-V (RS_)2 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 240 TURBO | SUV | 2022 - | HONDA (DONGFENG) L15BZ | 142KW / 193HP | 1498 | Petrol |
| HEV AWD | SUV | 2022 - | HONDA (DONGFENG) LFB22 | 158KW / 215HP | 1993 | Petrol/Electric |
CR-V (RT_, RW_, RY_)3 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 240 TURBO AWD | SUV | 2017 - | HONDA (DONGFENG) L15BL | 142KW / 193HP | 1498 | Petrol |
| HEV AWD | SUV | 2017 - | HONDA (DONGFENG) LFA11 | 158KW / 215HP | 1993 | Petrol/Electric |
| HEV AWD | SUV | 2017 - | HONDA (DONGFENG) LFB12 | 158KW / 215HP | 1993 | Petrol/Electric |
Характеристики
Сторона установкиЗадний мост
Данные о совместимости уточняйте по оригинальному номеру и VIN.
