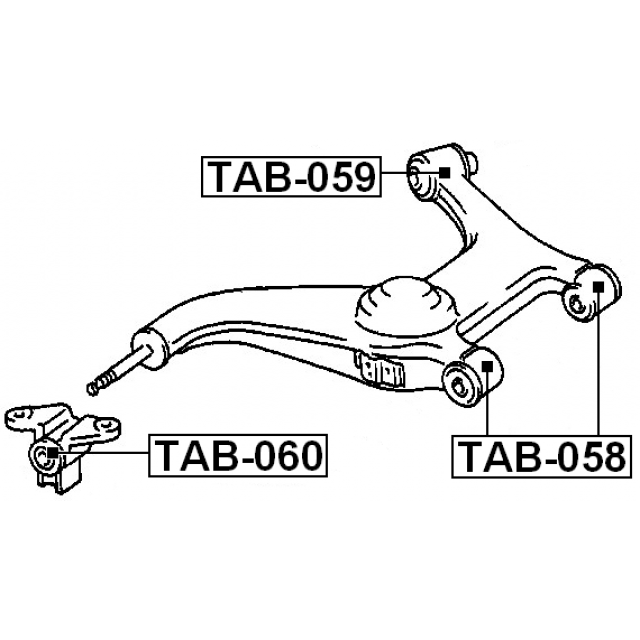

Чертёж / схема
FEBEST / Артикул
TAB-059
сайлентблок заднего нижнего рычага
FEBESTFEBEST
АртикулTAB-059
OEM / аналоги
TOYOTA48720-28070
TOYOTA48720-28071
TOYOTA48720-28H00
TOYOTA48730-28070
TOYOTA48730-28071
TOYOTA48730-28H00
Применимость
TOYOTA
ESTIMA EMINA / LUCIDA (_R1_, _R2_)7 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.2 TD 4x4 (CXR20G, CXR21G) | MPV | 1990 - 1999 | TOYOTA 3C-TE | 74KW / 101HP | 2184 | Diesel |
| 2.2 TD 4x4 (CXR20G, CXR21G) | MPV | 1990 - 1999 | TOYOTA 3C-TE | 77KW / 105HP | 2184 | Diesel |
| 2.2 TD (CXR10, CXR11) | MPV | 1990 - 1999 | TOYOTA 3C-TE | 74KW / 100HP | 2184 | Diesel |
| 2.2 TD (CXR10G, CXR11G) | MPV | 1990 - 1999 | TOYOTA 3C-TE | 77KW / 105HP | 2184 | Diesel |
| 2.4 4x4 (TCR20G, TCR21G) | MPV | 1990 - 1999 | TOYOTA 2TZ-FE | 99KW / 135HP | 2438 | Petrol |
| 2.4 (TCR10G, TCR11G, TCR10W) | MPV | 1990 - 1999 | TOYOTA 2TZ-FE | 99KW / 135HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 1999 | TOYOTA 2TZ-FZE | 118KW / 160HP | 2438 | Petrol |
ESTIMA I (_R1_, _R2_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.2 TD (CXR10, CXR11) | MPV | 1990 - 2000 | TOYOTA 3C-TE | 74KW / 101HP | 2184 | Diesel |
| 2.4 16V 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 16V (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR20, TCR21) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 4WD (TCR21G, TCR20G) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 99KW / 135HP | 2438 | Petrol |
| 2.4 4WD (TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 LE/DLX 16V (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10, TCR11) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
PREVIA / ESTIMA I (_R1_, _R2_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.2 TD (CXR10, CXR11) | MPV | 1990 - 2000 | TOYOTA 3C-TE | 74KW / 101HP | 2184 | Diesel |
| 2.4 16V 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 16V (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR20, TCR21) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 4WD (TCR21G, TCR20G) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 99KW / 135HP | 2438 | Petrol |
| 2.4 4WD (TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 LE/DLX 16V (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10, TCR11) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
PREVIA I (_R1_, _R2_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.2 TD (CXR10, CXR11) | MPV | 1990 - 2000 | TOYOTA 3C-TE | 74KW / 101HP | 2184 | Diesel |
| 2.4 16V 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 16V (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR20, TCR21) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 4WD (TCR21G, TCR20G) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 99KW / 135HP | 2438 | Petrol |
| 2.4 4WD (TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 LE/DLX 16V (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10, TCR11) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
TARAGO / ESTIMA I (_R1_, _R2_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.2 TD (CXR10, CXR11) | MPV | 1990 - 2000 | TOYOTA 3C-TE | 74KW / 101HP | 2184 | Diesel |
| 2.4 16V 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 16V (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR20, TCR21) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 4WD (TCR21G, TCR20G) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 99KW / 135HP | 2438 | Petrol |
| 2.4 4WD (TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 LE/DLX 16V (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10, TCR11) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
TARAGO I (_R1_, _R2_)12 модиф.
| Название | Кузов | Годы | Двигатель | Мощность | Объём | Топливо |
|---|---|---|---|---|---|---|
| 2.2 TD (CXR10, CXR11) | MPV | 1990 - 2000 | TOYOTA 3C-TE | 74KW / 101HP | 2184 | Diesel |
| 2.4 16V 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 16V (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR20, TCR21) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 4WD (TCR21G, TCR20G) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 99KW / 135HP | 2438 | Petrol |
| 2.4 4WD (TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 4WD (TCR21_, TCR20_, TCR21R, TCR20R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 LE/DLX 16V (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR10, TCR11) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 102KW / 139HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
| 2.4 (TCR11_, TCR10_, TCR10R, TCR11R) | MPV | 1990 - 2000 | TOYOTA 2TZ-FE | 97KW / 132HP | 2438 | Petrol |
Характеристики
Сторона установкиСзади | Внутри | Задний мост нижний
Данные о совместимости уточняйте по оригинальному номеру и VIN.
